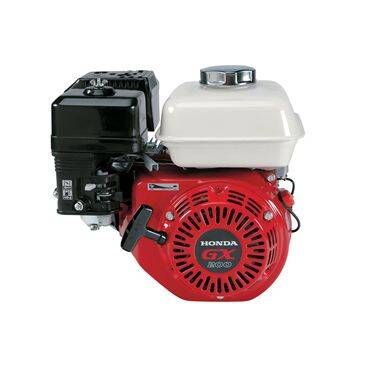

Honda GX200 Engine
Professionals rely on the GX200 to deliver reliable, easy starting, fuel efficient performance day in and day out.
Brand: Honda
SKU: GX200 QX2
Powered by: 4 Stroke
Warranty: 3 Years
$660.00
Professionals rely on the GX200 to deliver reliable, easy starting, fuel efficient performance day in and day out.
Common Applications:
- Pressure washers
- Commercial lawn and garden equipment
- Tillers /Cultivators
- Generators
- Construction / industrial equipment
- Agricultural equipment
- Go Karts
- Water pumps
Features
FUEL EFFICIENT, HIGH OUTPUT OPERATION | Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency |
---|---|
OHV design for increased efficiency and optimal power transfer | |
High compression ratio for better fuel efficiency | |
SMOOTH PERFORMANCE | Precision engineered components result in lower vibration |
Ball bearing supported crankshaft for greater stability | |
EXCEPTIONALLY QUIET | Ball bearing supported crankshaft for greater stability |
Reduced mechanical noise due to light weight, noise-reducing materials | |
Forged steel crankshaft and rigid crankcase | |
Helical cut gears | |
Sophisticated air intake system | |
PROVEN RELIABILITY | Oil Alert |
Cast iron cylinder sleeve | |
High quality materials, fit, and finish | |
Dual element air cleaner | |
Fuel Valve | |
EASY TO USE AND MAINTAIN | Simple throttle control |
Large fuel tanks | |
Large automotive type fuel cap | |
Dual oil drains and fills | |
Easy, convenient, heavy duty control box | |
Easily accessible spark plug | |
EASY STARTING | Heavy duty recoil starter |
Automatic mechanical de-compression system | |
EMISSIONS COMPLIANT | Applicable models meet the strictest world standards, contact Honda for more info |
No catalyst necessary | |
AVAILABLE OPTIONS | Gear reduction options |
Electric start | |
Spark arrester available | |
Charge and lamp coils with multiple output options available |
Specifications
Model | GX200 |
---|---|
Type | 4-stroke, overhead valve, single-cylinder, horizontal shaft |
Bore and Stroke | 68 x 54 mm |
Displacement | 196 cm3 |
Compression Ratio | 8.5:1 |
Net Power | 4.1kW (5.5HP) at 3,600 rpm |
Continuous Rated Power | 3.7kW (5.0HP) at 3,600 rpm |
Maximum Net Torque | 12.4 Nm at 2,500 rpm |
Ignition System | Transistorised magneto ignition |
Starting System | Recoil (Electric Starter Optional) |
Cooling System | Forced-Air |
PTO Shaft Rotation | Counter-clockwise (from P.T.O. side) |
Fuel Consumption at Rated Power | 1.7 L/h at 3,600 rpm |
Lubrication System | Splash |
Recommended Oil | 10W/30 API SG |
Oil Capacity (Litres) | 0.6 L |
Fuel Capacity (Litres) | 3.1 L |
Dimensions | 313 x 376 x 346mm |
Dry Weight | 16.0kg |
Other Options | 2:1 Reduction – 2:1 Reduction with Clutch – 6:1 Reduction |
