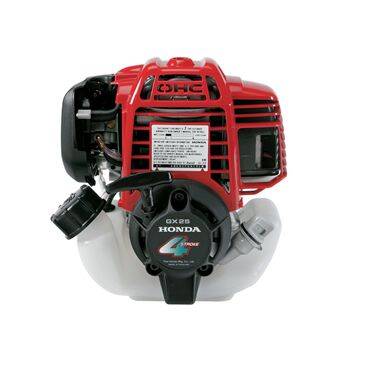

Honda GX25 Engine

The ultra-lightweight GX25 mini 4-stroke efficiently delivers the kind of efficient cleaner, powerful, quiet performance that you'd expect from a larger engine- but in a very compact package.

Brand: Honda

SKU: GX25T GD1

Warranty: 3 Years

$525.00

Availability: Out of Stock

Make an Enquiry

Honda applied our superior engine technology to create the world's first 360° inclinable 4-stroke engines. The ultra-lightweight GX25 mini 4-stroke efficiently delivers the kind of efficient cleaner, powerful, quiet performance that you'd expect from a larger engine- but in a very compact package.

Common Applications:

Commercial lawn and garden equipment
Tillers / cultivators
Construction / industrial equipment
Agricultural equipment
Water pumps

Features

ADVANCED TECHNOLOGY	4-stroke – no fuel/oil mixing
	Full 360° “any-side-up” operation – use and store in any position
	Exclusive rotary-slinger lubrication system
	The world’s lightest OHC engine
	Fuel Efficient, High Output Operation
	Approximately half the operating cost of comparable 2-stroke engines
	Efficient port configuration and large diameter valves maximize power output
	Lighter, more rigid valve train
	Carburetor equipped with accelerator pump for fast, easy acceleration
SMOOTH PERFORMANCE	Precision engineered components result in lower vibration
	Lighter piston minimizes vibration
	Ball bearing supported crankshaft for greater stability
	Roller bearing supported connecting rod
EXCEPTIONALLY QUIET	Belt-driven OHC design reduces mechanical noise
	Large capacity, multi-chamber exhaust system
	Sophisticated air intake system
PROVEN RELIABILITY	High quality materials, fit and finish
	Lifetime timing belt design
	Integrated fuel system protection
	Diaphragm carburetor
EASY TO USE AND MAINTAIN	Easily accessible spark plug
	Easy to drain and re-fill oil
	No mixing of gas and oil
EASY STARTING	Exhaust decompression system
	Unique low inertia design
EMISSIONS COMPLIANT	Applicable models meet the strictest world standards, contact Honda for more info
	No catalyst necessary
AVAILABLE OPTIONS	Special designs for horizontal and vertical applications available

Specifications

Model	GX25
Type	4-stroke, overhead cam, single-cylinder, horizontal shaft
Bore & Stroke	35 x 26 mm (1.4 x 1.0 in)
Displacement	25cm3 (1.5 cu in)
Compression Ratio	8.0:1
Net Power	0.72kW (1.0HP) at 7,000 rpm
Maximum Net Torque	1.0 Nm (0.74 lbs ft) at 5,000 rpm
Ignition System	Transistorised magneto ignition
Starting System	Recoil Starter
Cooling System	Forced-air
PTO Shaft Rotation	Counter-clockwise (from P.T.O. side)
Fuel Consumption at Rated Power	0.54 L/h at 7,000 rpm
Lubrication System	Oil Mist
Recommended Oil	10W/30 API SG
Oil Capacity (Litres)	0.08L
Fuel Capacity (Litres)	0.55L
Dimensions	192mm x 221mm x 230mm
Dry Weight	2.78kg (w/o clutch)
Other Specs	Infinite Operating Angles
